Deploy MS Windows 11, Office 365 with MDT
Danny Moran
How to deploy Windows 11 22H2 with Microsoft Deployment Toolkit (MDT) & Windows Deployment Services (WDS)
when using Hyper-V add KB4564442
22H2 works the following ADK / PE add-on - see Windows ADK support matrix for Windows 10 & 11
WinPE Windows 11 Version for 21H2 – 10.1.22621.1.
Windows 11 ADK version for 21H2 – 10.1.22621.1.
Deploy Office
How to include Office 365 ProPlus in your reference image with MDT
The current time zone: tzutil /g
Lists all available time zones: tzutil /l
Correct Domain Join Account Permissions – MDT OS Deployment
Automating MDT Drivers with The HP Client Management Script Library
HP Client Windows PE 10 x64 Driver Pack
MICROSOFT DEPLOYMENT TOOLKIT (MDT): CONFIGURATION WITH UNFORESEEN CHALLENGES
- Details
Electro-Chemical Metal Marking & Etching
Material
- Brother P-Touch that works for TZe tapes
These printers work fine with the TSe tapes too - at least my experiece with the TP-P750W and the PT-2430PC. - Brother stencil tape STe-141 (18 mm), STe-151 (34 mm) or TSe-161 (36 mm)
- highlighter
- Marking Head (AliExpresss ~12 CHF)
- Electrolyte (NaCl in water ;-)
- Oil to prevent rusting, when etching iron or regular steel.
- Power Supply
Process
Print the stencil with Brothers P-Touch software.
Use the highlighter on the glossy side of the stencil to make to improve visibility.
Apply the stencil to the metal you want to mark/etch.
Use insulation tape to keep the stencil in place and protect the area around the stencil from being etched.
Attach the red (+) pol to the metal you want to mark/etch.
Attach the black (+) pol to the marking head.
Moist the marking head with the NaCl-sollution.
Turn the power supply on.
Swab the stencil with the marking head. You may check the current indicator to become an idea of the etching work done ;-)
Turn the power supply off.
Remove the power cords, stencil from the etched metal.
Clean the metal.
When etching iron or "regular" steel apply oil to prevent rusting.
Result

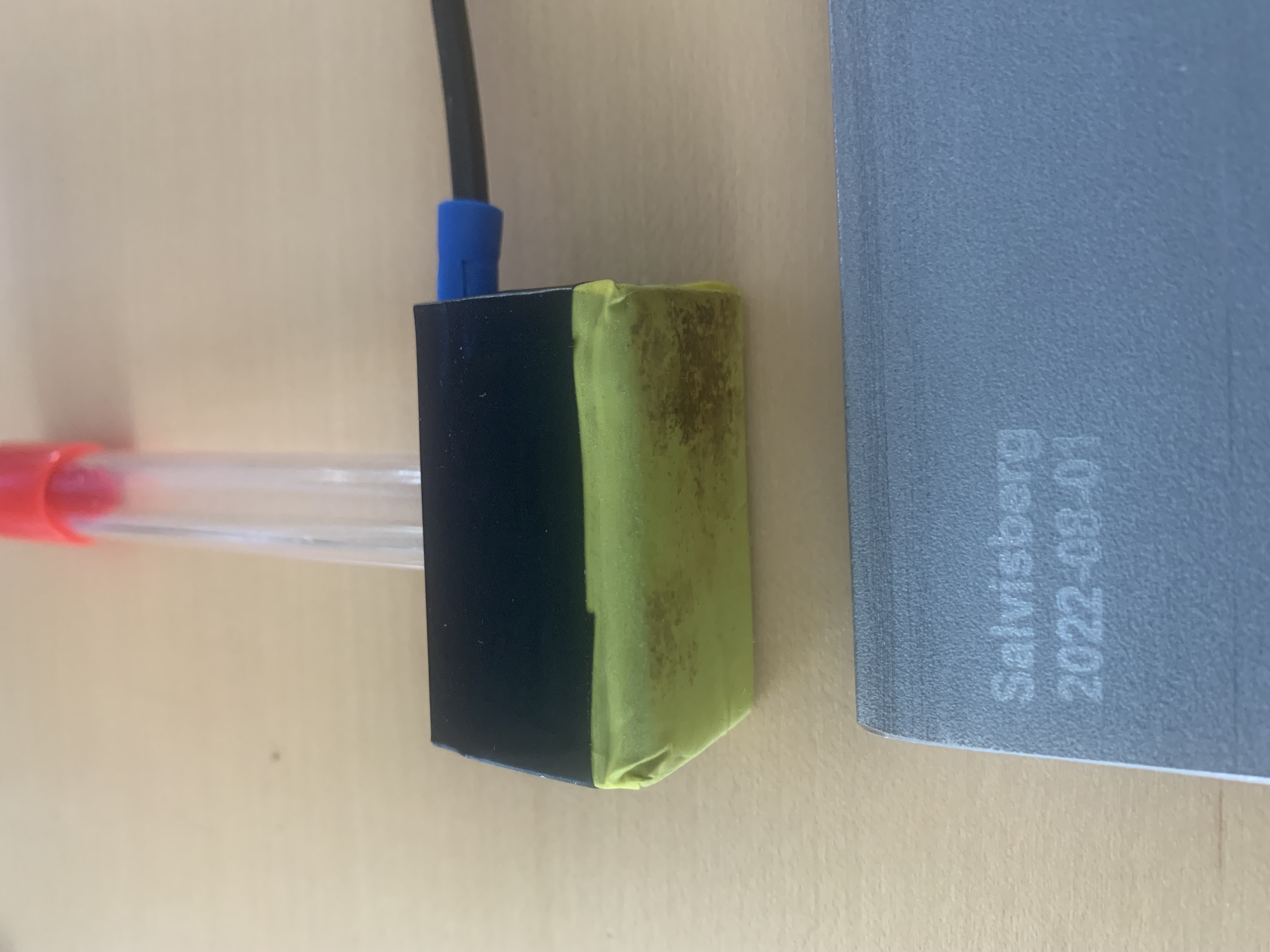

I used for this stainless steel (1.4301) 9 V DC (constant voltage) ~10 seconds.
Etching/marking parameters vary from metal to metal.
- Details
Project - Honey Extractor
Plan
Have a honey extractor for «Schweizer Kasten» frames
Requirements
- Stainless steel (e.g. ANSI 304)
- at least 9 Swiss honey frames
- radial cage (tangential add-on for breed frame is OK)
- gap free welded
- advanced floor geometry to support honey drain
- electric motor
- motor on top (removable easily)
- 230 V (Kaltgerätestecker C14) prefered
- speed regulator
- Diameter of the vat: ~520 mm (or ~625 mm)
- Diameter of the cage: ~502 mm (or ~600 mm)
- rubber feet covers
- brushless motor
- ...
Candidates
- Lega - Motorized Extractor TOP JOLLY Tangential and Radial Universal Stainless Steel Cage (~1400 EUR) via Imme
- Logar - 9-Waben-Radialschleuder für 6 Schweizer Honigrahmen und 3 Schweizer Brutrahmen, Kessel 52 cm, 110W Motor (~1300 EUR) via via honigschleudern.ch/
- Logar - 12-Waben-Radialschleuder für Schweizer Honigrahmen, Kessel 63 cm, 110W Motor (~1600 EUR) via www.honigschleudern.ch/
- Carl Fritz - CFM-Radialschleuder Ø 63cm, 12-Waben CH mit Flüsterhexe (~1800 EUR) via (?)
Decision
- Carl Fritz - CFM-Radialschleuder Ø 63cm, 12-Waben CH mit Flüsterhexe Item 5263012-CH (1748 EUR incl. 19 % VAT) ship to LAS Burg (free of charge & export papers ready to stamp by DE customs)
includes «5203812-CH Radialkorb für 12 Schweizer Rähmchen»
+ 6300059 Gummifüße,
+ 6000074 Fett für Bodenlager,
+ 6000070 Kugel für Bodenlager (spare part)
+ 23045007 Dichtstopfen für Bodenlager (spare part)
Concerns
- Size of shipment vs. size of my car :-/
Reference
- Details
Hive Scale - Project (Stockwaage)
Plan
Have weight readings of multiple bee hives transmitted via LoRa.
Power supplied by battery and solar module to keep the sensor and transmitter self-sufficient.
Hardware
- LILYGO® TTGO T-Weigh Lora T-Micro32 Weighing 4-Way HX711 SX1262 ESP32 IOT High Sensitivity (~30 EUR)
- LILYGO® TTGO T-U2T USB To TTL Automatic Downloader CH9102 Programmer Adapter Serial Development Board Open Source Module (~5 EUR)
- Bosche H40A Single point load cell OR H30A Single point load cell (~50 EUR)
- LANGLITZ Metalle GmbH (stainless steel & aluminum)
Resources
https://github.com/Xinyuan-LilyGO/T-Weigh
